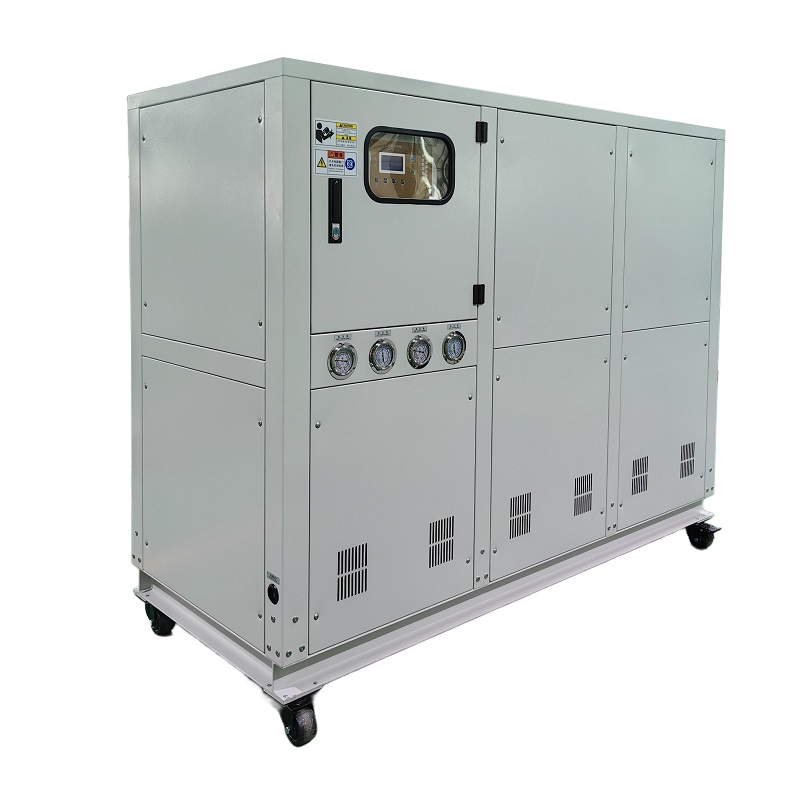

The water-coled vortexchiler is a refrigeration equipment suitable for various occasions, with a cooling capacity ranging from 124.9 kW to 3584kW. It has the characteristics of high efficiency,low noise,and stable operation. The unit has a compact structure and simple pipeline design,supporting extemal water pipe installation and easy maintenance. The built-in microcomputer control system can achieve load adaptive adjustment and provide multiple safety protection mechanisms such as high and low voltage protection frozen water anti freezing and icing protection,and power phase sequence protection. The core refrigeration components are selected from well-known domestic and foreign brands to ensure the reliability of the unit operation.
Item :
HX-SWProduct name :
Water cooled vortex (piston) typeCooling capacity :
10 ~ 250kwRefrigerant :
R22（R407C/R410A/R134A）Environmentally FriendlyMOQ :
1 unitApplication :

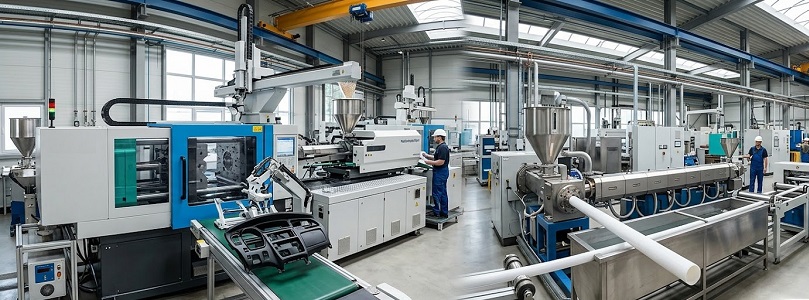

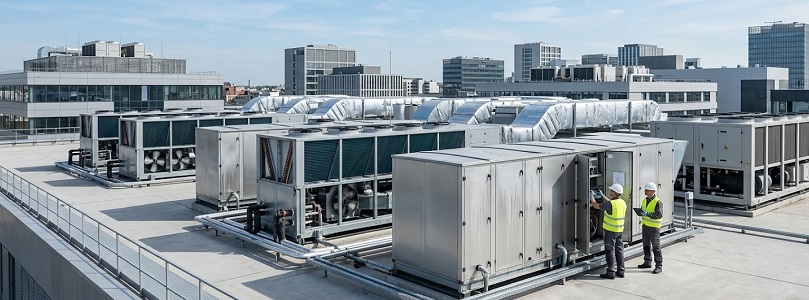

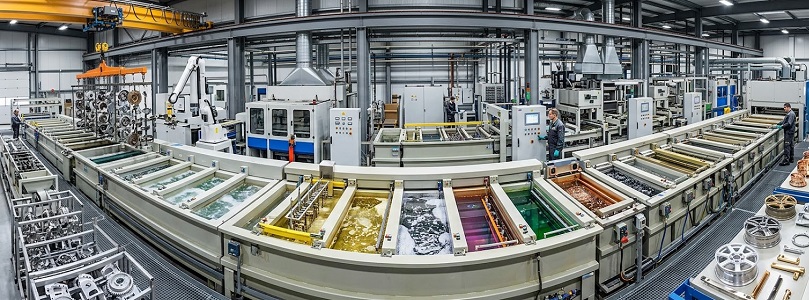

Plastic Molding, Electronic Soldering, Printing and Packaging, Textile Dyeing and Printing, Electroplating and Anodizing, Commercial Air Conditioning SystemsUncompromising Efficiency in Water-Cooled Scroll Chillers
Our industrial-grade water-cooled scroll chillers are engineered to meet versatile temperature control challenges, delivering reliable, low-noise, and energy-efficient cooling performance for a wide range of commercial and industrial applications. Featuring intelligent control, it utilizes a branded, fully hermetic scroll compressor. It offers numerous advantages, including high efficiency, low noise, minimal vibration, reliable operation, and a long service life.
Design applications incluce industrial refrigeratior plastic molding.electronic welding printing and packaging,textile printing and dyeing,electroplating and oxidation,commercial air conditioning
systems.
The unit has a compact structure,small fotprint, simple pipeline design,only requires extemal water pipes,and easy installation and maintenance. Intellgent contro,using brand fully enclosed vortex refigeration compressor. It has the advantages of high efficiency,low noise,small vibration,reliable operation,and long service life.
The microcomputer control system has powerul functions such as safety protection,communication,fault diagnos,and automatic adaptation. And provide multiple protection functions such as high and kow voltage protection,frozen water anti freezing and icing protection,power phase sequence protection,phase loss protection,insufficient water flow protection,compressor motor overheating,etc.
| Parameter | HX-05SW | HX-08SW | HX-10SW | HX-15SW | HX-20SW | HX-25SW | HX-30SW | HX-40SW | HX-50SW | |
|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity (kW) | 15 | 24 | 30 | 45 | 60 | 75 | 90 | 120 | 150 | |
| Cooling capacity (Kcal/h) | 12900 | 20640 | 25800 | 38700 | 51600 | 64500 | 77400 | 103200 | 129000 | |
| Total power (kW) | 4.12 | 6.75 | 8.25 | 12.1 | 17.2 | 20.2 | 25.5 | 33 | 41 | |
| Running current (A) | 8 | 13 | 16 | 24 | 34 | 40 | 51 | 66 | 82 | |
| Power supply | 3 Phase 380V 50Hz | |||||||||
| Temp. control range (℃) | 5 ~ 35 | |||||||||
| Temp. control accuracy (℃) | ±1 ~ 2 | |||||||||
| Refrigerant | Type | R22 (R407C/R410A/R134A) | ||||||||
| Filling amount (KG) | 3 | 4.8 | 6 | 8 | 12 | 14 | 18 | 24 | 30 | |
| Compressor | Throttling Device | Capillary | Thermal Balance Expansion Valve | |||||||
| Type | Scroll | |||||||||
| Power (kW) | 3.75 | 3.0*2 | 3.75*2 | 5.5*2 | 7.5*2 | 9.0*2 | 7.5*3 | 7.5*4 | 9.0*4 | |
| Chilled Water | Tank volume (L) | 65 | 140 | 180 | 200 | 260 | 280 | 390 | 450 | 500 |
| Tank material | SUS304 Stainless Steel | |||||||||
| Pipe diameter | G1" | G1-1/2" | G1-1/2" | G1-1/2" | G2" | G2" | G2-1/2" | G3" | G3" | |
| Water Pump | Pump Head (m) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Power (kW) | 0.37 | 0.55 | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 3 | 4 | |
| Evaporator | Type | Water tank coil type (shell and tube type optional) | ||||||||
| Chilled water flow (m³/h) | 3 | 4.8 | 6 | 8 | 12 | 15 | 18 | 24 | 30 | |
| Condenser | Type | Shell and tube | ||||||||
| Cooling water flow (m³/h) | 3.5 | 5.6 | 7 | 11 | 14 | 18 | 21 | 24 | 35 | |
| Safety Protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection. | |||||||||
| Dimensions | Length (mm) | 950 | 950 | 1550 | 1550 | 1760 | 1760 | 1940 | 2200 | 2400 |
| Width (mm) | 650 | 650 | 750 | 750 | 750 | 750 | 900 | 950 | 950 | |
| Height (mm) | 1100 | 1100 | 1350 | 1350 | 1480 | 1480 | 1680 | 1700 | 1700 | |
| Unit weight (KG) | 130 | 190 | 260 | 350 | 440 | 520 | 650 | 750 | 850 | |
